Microhardness Measurement in the Micrometer Range
Inexpensive Microhardness Measurement Instrument for Coatings in the Micrometer Range
|
Features
- Ample load and depth range; can be used for a broad range of applications from
polymeric automotive clear coats to ceramic diamond-like carbon coatings
- Compact design makes the HM2000S and ideal tool for all environments
- Most samples can be measured quickly and without special sample preparation.
- Good thermal stability allows for measurement of rate-dependent material properties of polymers
- Indentation: Vickers, Berkovich or spherical indentors are available
- Optional: Stone plate with silicon damper pads to reduce influence of vibrations
- Easy operation through the customizable WIN-HCU® Software
Typical fields of applications
- Paint, synthetic or hard material coatings (PVD, CVD)
- Electroplated coatings (decorative, functional)
- Materials used specifically in medical technology applications
- Electronic components
|
|
|
|
Inexpensive measuring system for determining the Martens hardness HM,
characteristic elastic quantities and additional material parameters in the micro and nano
range, using the instrumented indentation test according to ISO 14577-1 and ASTM E 2546.
|
|
More information:
|
|
Features
- Ample load and depth range; can be used for a broad range of applications from polymeric
automotive clear coats to cermaic diamond-like carbon coatings
- Motorized z-axis and fully automated surface detection for higher productivity
- Enhanced high resolution optical system with autofocus and multiple objective turret
- Custom granite structure for enhanced frame stiffness and low noise floor
- Measure on smallest structures, cross-sections with high precision programable X/Y-table
- Minimal sample preparation due to large working area and open layout
- Vickers, Berkovich or spherical indentors are available
- Optional: active damping table to reduce influence of vibrations
- Easy operation through the customizable WIN-HCU® Software
Typical fields of applications
- Paint, synthetic or hard material coatings (PVD, CVD)
- Electroplated coatings (decorative, functional)
- Materials used specifically in medical technology applications
- Electronic components, bond wires, etc.
|
|
|
|
Feature packed, user friendly instrumented indentation instrument to measure hardness in MPa,
Vickers and Martens, elastic modulus, creep and much more of coatings and bulk material.
ISO 14577-1 and ASTM E 2546.
|
|
More information:
|

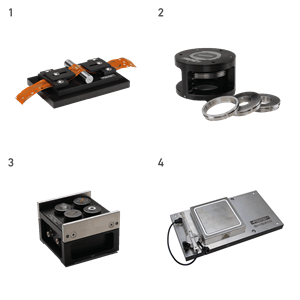

Accessories : Sample Securing Devices – Hardness Specimens Under Control
|
Features
The support devices are designed to place different samples into the desired position.
The sample is in a fixed position during continuous operation. Even very thin foils of plastic,
paint or metal as well as crossground samples can be secured safely and reliably using
the cross-sectioned HM sample supports.
If the specimens to be measured are
of different heights, the universal HM sample support offers the option of a simple height
adjustment to place the four specimens at the same level, for example.
The simple sample handling of all three clamping devices will save you valuable time during sample preparation.
For example, it is possible to prepare the samples outside the HM hardness measuring instrument.
If the ground samples change in diameter, you can change the cross sectioned insets, prepared in standard sizes.
In addition, well cross sectioned markers aid in the convenient easily visible positioning of the supports
in the hardness measuring instrument. The required accessories are included in the shipment.
|
|
HM Universal probe support incl. heating station and heating plate
|
|
|
Proper positioning of specimens is a daily challenge inlab operations.
The new securing devices for the hardnessmeasurement systems PICODENTOR® HM 500
and FISCHERSCOPE® HM 2000 are important tools forsuch tasks.
|
|
